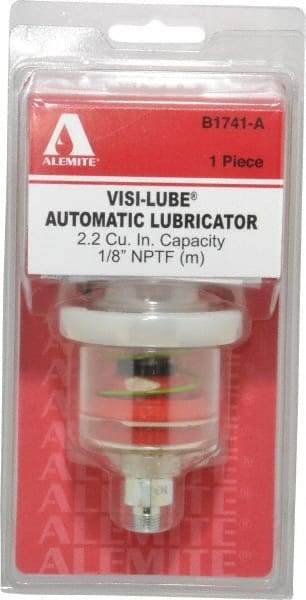

Alemite - 1.22 Ounce Reservoir Capacity, 1/8 NPTF Thread, Steel, Spring-Loaded, Grease Cup and Lubricator - -40 to 65.56°C Operating Temp, 0.15 to 0.24 Bar Operating Pressure
Item #: 03243532
Brand: Alemite
Model #: B1741-A
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Operation | Spring-Loaded |
| Reservoir Capacity Range | 1 oz. - 7.9 oz. |
| Reservoir Material | Steel |
| Shank Thread Size | 1/8 |
| Shank Thread Type | NPTF |
| Reservoir Capacity (oz.) | 1.22 |
| Reservoir Capacity (mL) | 37.00 |
| Minimum Operating Temperature (F) | -40.00 |
| Minimum Operating Temperature (C) | -40.00 |
| Maximum Operating Temperature (F) | 150.00 |
| Maximum Operating Temperature (C) | 65.56 |
| Minimum Operating Pressure (psi) | 2.20 |
| Minimum Operating Pressure (bar) | 0.15 |
| Maximum Operating Pressure (psi) | 3.50 |
| Maximum Operating Pressure (bar) | 0.24 |
| Valve Color | Black/Green/Orange |
| PSC Code | 4930 |
