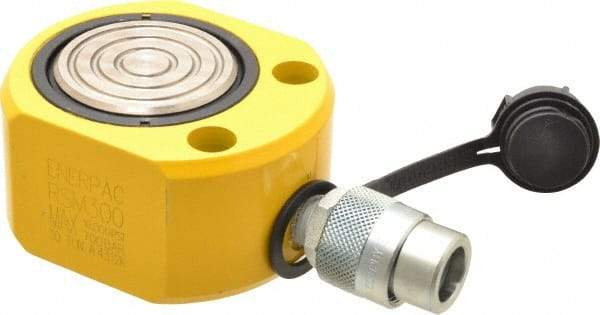

Enerpac - 30 Ton, 0.5" Stroke, 3.25 Cu In Oil Capacity, Portable Hydraulic Flat Body Cylinder - 6.49 Sq In Effective Area, 2.31" Lowered Ht., 2.81" Max Ht., 2.88" Cyl Bore Diam, 2.5" Plunger Rod Diam, 10,000 Max psi
Item #: 03205507
Brand: Enerpac
Model #: RSM300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Flat Body |
| Load Capacity (Ton) | 30 |
| Piston Stroke (Decimal Inch) | 0.50 |
| Cylinder Bore Diameter (Decimal Inch) | 2.88 |
| Lowered Height | 2.31 |
| Oil Capacity | 3.25 |
| Effective Area | 6.49 |
| Maximum Height (Decimal Inch) | 2.81 |
| Outside Diameter (Inch) | 4-5/8 |
| Plunger Diameter | 2.50 |
| Base To Inlet Port (Inch) | 3/4 |
| Maximum Pressure (psi) | 10000 |
