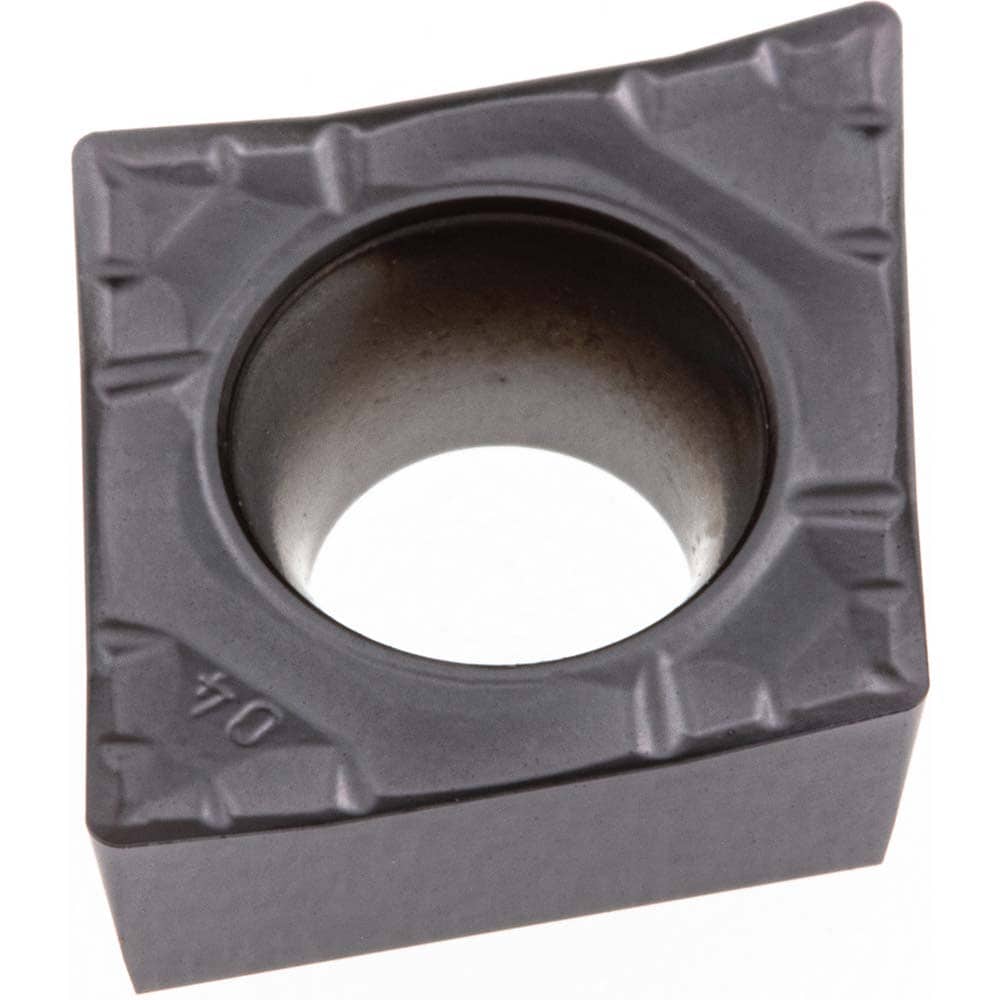

Turning Insert: CCGT430.4-AFV12K, Carbide
Item #: 93226215
Brand: Arno
Model #: 12433
Product Specifications
| ANSI Insert Code | CCGT430.2 |
| ISO Insert Code | CCGT120401 |
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 80 |
| Manufacturer Grade | AK10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CCGT |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Fractional Inch) | 5/64 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/2 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5080 |
| Insert Length (mm) | 12.90 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K |
| Iso Code | CCGT 120401FN-ALU |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 12433 |
| Material Grade | N25; N05 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | ALU |
| Cutting Edge Style | Sharp |
| Industry Standard Number | CCGT430.2FN-ALU |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 12.70 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 430.2 |
| ISO Size Code | 120401 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 430.2 |
| Country of Origin | Luxembourg |
