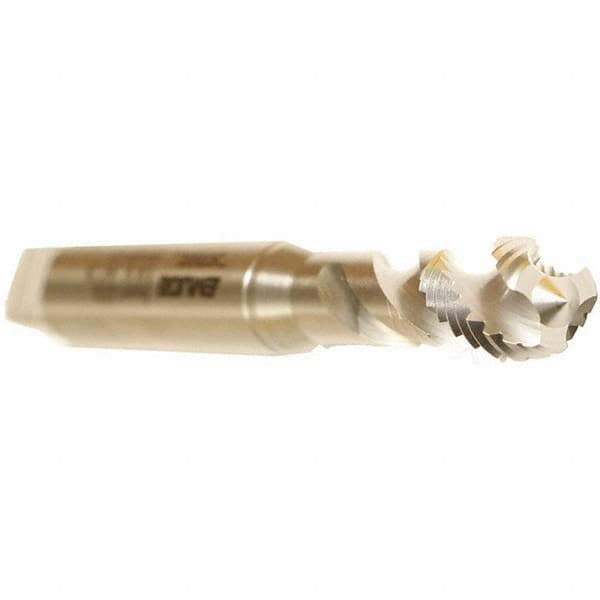

Emuge - M4.5x0.75 Metric 3 Flute 6H Modified Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 70mm OAL, Right Hand Flute, Right Hand Thread, Series Enorm
Item #: 01538792
Brand: Emuge
Model #: B0501000.0045
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M4.5x0.75 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 70.00 |
| Helix Angle | 35 |
| Thread Standard | Metric |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.3150 |
| Thread Length (mm) | 8.00 |
| Flute Type | Medium Spiral |
| Series/List | Enorm |
| Tapping Depth (Decimal Inch) | 0.9843 |
| Tapping Depth (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45 |
| Material Application | Copper Alloys; Steel |
