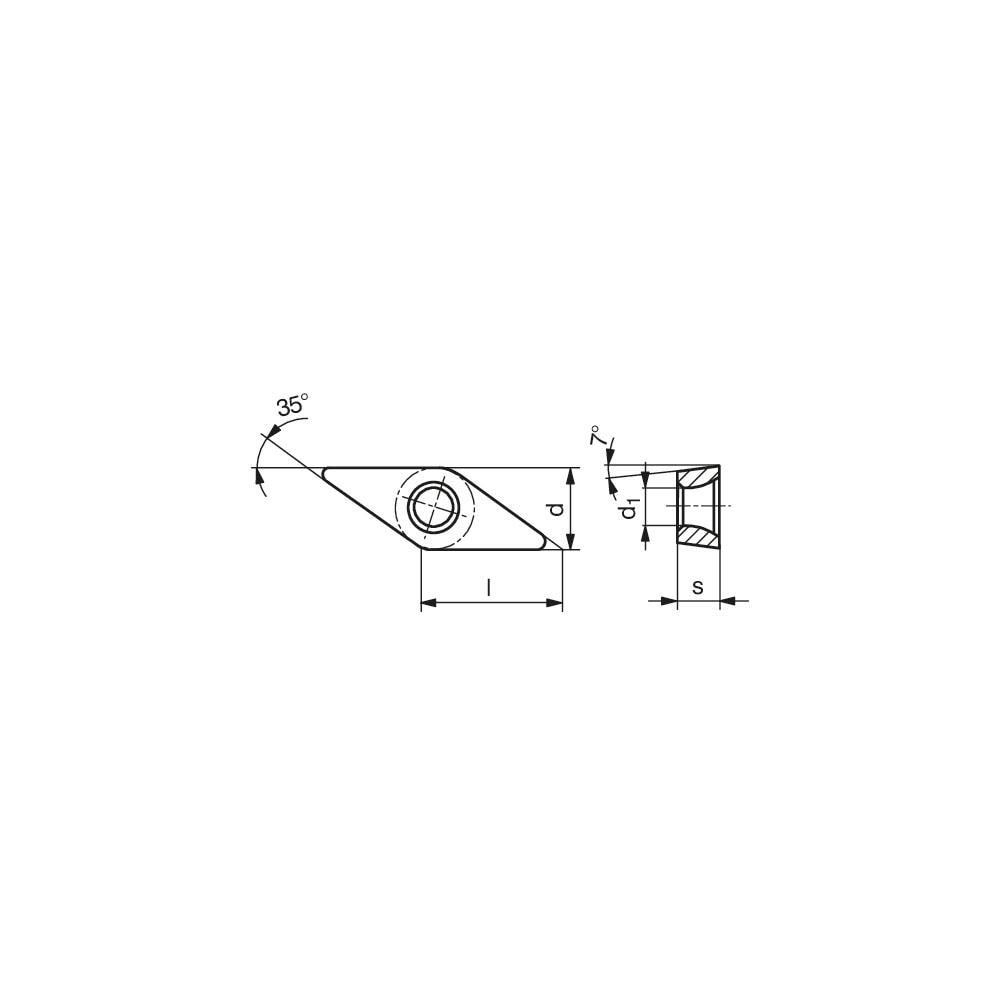

Turning Insert: VCMT332EN-FMS CT-P15, Carbide
Item #: 26286799
Brand: Ceratizit
Model #: 7530803009
Product Specifications
| ANSI Insert Code | VCMT332 |
| ISO Insert Code | VCMT160408 |
| Relief Angle | 7 |
| Insert Style | VCMT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 35 |
| Manufacturer Grade | CTP15 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | VCMT |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.6535 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | VCMT 160408EN-FMS CT-P15 |
| Chip Breaker | FMS |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
