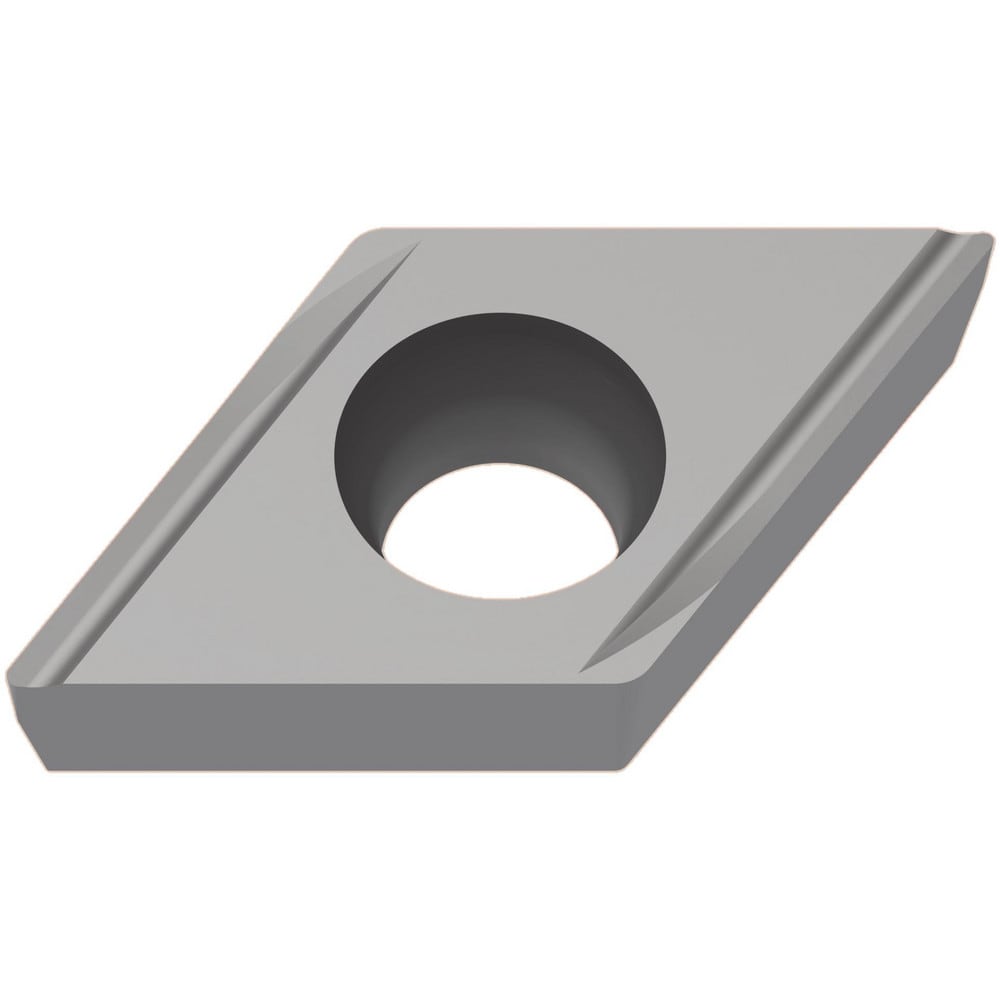

Turning Insert: DCGT32.50.2MLSS MS6015, Carbide
Item #: 00756650
Brand: Mitsubishi
Model #: 10592670
Product Specifications
ANSI Insert Code | DCGT32.50.2 |
ISO Insert Code | DCGT |
Relief Angle | 7 |
Insert Style | DCGT |
Corner Radius (mm) | 0.10 |
Corner Radius (Decimal Inch) | 0.0039 |
Included Angle | 55 |
Manufacturer Grade | MS6015 |
Coating/Finish | PVD |
Insert Hand | Left Hand |
Insert Thickness (Inch) | 5/32 |
Insert Thickness | 3.97 |
Insert Thickness (Decimal Inch) | 0.1562 |
Inscribed Circle (Decimal Inch) | 0.3750 |
Inscribed Circle (Inch) | 3/8 |
Inscribed Circle (mm) | 9.53 |
Insert Material | Carbide |
Insert Shape | D - Diamond (Rhombic) 55-Deg |
Chip Breaker Operation | Light Machining; Finishing |
Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
Side Clearance | Positive |
Number Of Cutting Edges | 2 |
Insert Shape Code | D |
Clearance Code | C |
Tolerance Code | G |
Primary Workpiece Material Code | P |
Chip Breaker | SS |
ANSI Size Code | 32.50.2 |
UNSPSC Code | 23242105 |
Insert Size Code | 3 |
