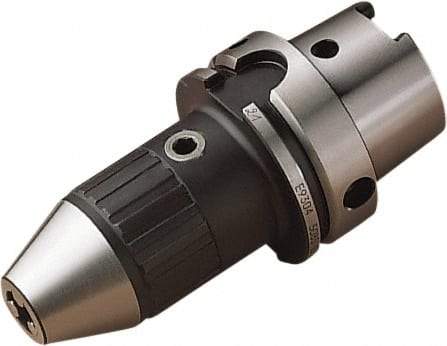

Seco - HSK63A, 0.99 to 12.98mm Capacity, Integral Shank Drill Chuck - Keyed, Taper Shank, 42.98mm Sleeve Diam
Item #: 00972422
Brand: Seco
Model #: 06418
Exact Tooling IR#: 04
Features and Benefits
Integral shank drill chucks are designed with the arbor (shank) built into the drill chuck, providing greater rigidity and concentricity than a press-fit tapered mount.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 12.98 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.5110 |
| Minimum Drill Chuck Capacity (mm) | 0.99 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0390 |
| Mount Type | Integral Shank |
| Mounting Size | HSK63A |
| Key Style | Keyed |
| Closed Length (mm) | 109.98 |
| Closed Length (Decimal Inch) | 4.3300 |
| Shank Type | Taper Shank |
| Sleeve Diameter (mm) | 42.98 |
| Sleeve Diameter (Decimal Inch) | 1.6920 |
| Key Number | H06-4 |
