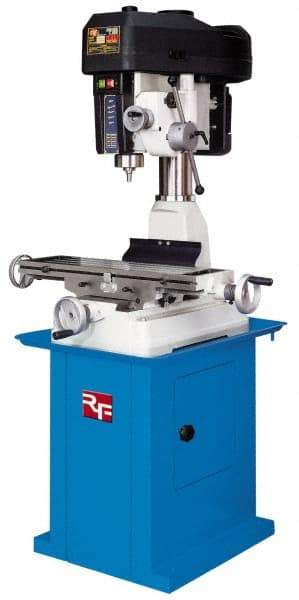

Value Collection - 1 Phase, Step Pulley Mill Drill Machine - 28-3/4" Table Length x 8-1/4" Table Width, 18-1/8" Longitudinal Travel, 7-1/2" Cross Travel, 12 Spindle Speeds, 1.5 hp, 110/220 Volts
Item #: 00685446
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. They commonly feature 8 or 16 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors. Machine phase would commonly match the type of electrical current used in the facility.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Step Pulley |
| Phase | 1 |
| Table Length (Inch) | 28-3/4 |
| Table Width (Inch) | 8-1/4 |
| Longitudinal Travel (Inch) | 18-1/8 |
| Cross Travel (Inch) | 7-1/2 |
| Number of Spindle Speeds | 12 |
| Minimum Spindle Speed (RPM) | 125.00 |
| Maximum Spindle Speed (RPM) | 3000.00 |
| Spindle Travel Length (mm) | 127.00 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | 3MT/R8 |
| Drilling Capacity in Steel (mm) | 31.75 |
| Drilling Capacity in Steel (Inch) | 1-1/4 |
| Drilling Capacity in Cast Iron (mm) | 31.75 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/4 |
| Tapping Capacity in Steel (mm) | 15.88 |
| Tapping Capacity in Steel (Inch) | 5/8 |
| Quill Diameter (Decimal Inch) | 4.5276 |
| Spindle Power Feed Rate Per Minute (mm/rev) | 0.12; 0.18; 0.25 |
| Maximum Spindle To Column Distance (Decimal Inch) | 8.0709 |
| Number of T-Slots | 4 |
| T-Slot Size (mm) | 16 x 26 |
| Head Swivel (Degrees) | 360.00 |
| Horsepower (HP) | 1.50 |
| Voltage | 110/220 |
