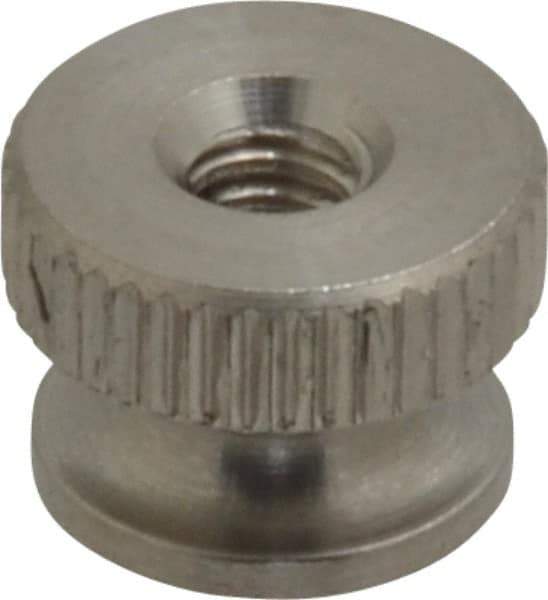

Electro Hardware - #6-32 UNC Thread, Uncoated, Grade 302, 303 Stainless Steel Round Knurled Thumb Nut - 9/32" Overall Height, 3/8" Head Diam
Item #: 00256933
Brand: Electro Hardware
Model #: THN5003M07F16
Exact Tooling IR#: 04
Features and Benefits
Thumb nuts are used in light-duty applications that do not require extremely tight fasteners. They are easily tightened by hand.
Round knurled head types have thick, cylindrical heads with a pattern of ridges that allow for easy gripping and tightening by hand.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
UNC indicates unified national coarse thread standards. Coarse threads have more TPI (threads per inch) and larger thread pitches.
| Product Specifications | |
|---|---|
| Type | Thumb Nut |
| Head Type | Round Knurled |
| System of Measurement | Inch |
| Thread Size | #6-32 |
| Material | Stainless Steel |
| Thread Standard | UNC |
| Material Grade | 302; 303 |
| Finish/Coating | Uncoated |
| Head Diameter (Decimal Inch) | 0.3750 |
| Head Diameter (Inch) | 3/8 |
| Head Diameter (mm) | 9.53 |
| Overall Height (mm) | 7.14 |
| Overall Height (Decimal Inch) | 0.2813 |
| Overall Height (Inch) | 9/32 |
| Fastener Standard | QQ-S-763 |
