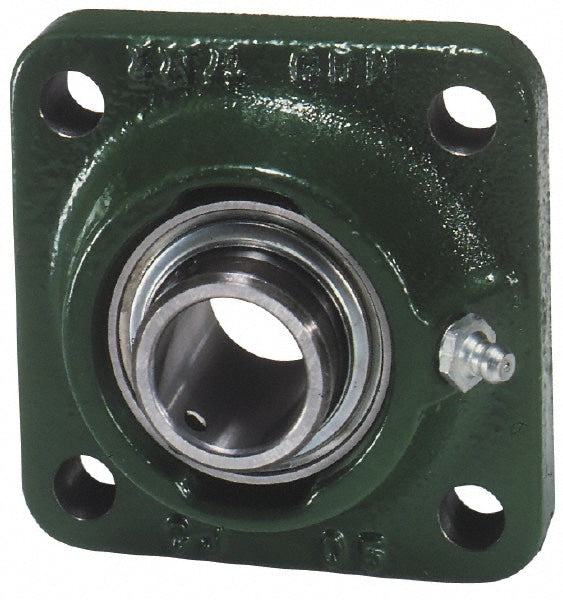

25mm ID, 3.7598" OAL x 1.5157" OAH 4-Bolt Set Screw Econ Seal Met
Item #: 57131666
Brand: INA Bearing
Model #: PCJY25
Product Specifications
| Type | 4Bolt Set Scrw Econ Seal Met |
| Inside Diameter (mm) | 25.0000 |
| Inside Diameter (Decimal Inch) | 0.9843 |
| Overall Length (Decimal Inch) | 3.7598 |
| Overall Height (Decimal Inch) | 1.5157 |
| Static Load Capacity | 1760.0 |
| Dynamic Load Capacity (Lb.) | 3150 |
| Distance Between Base And Center (mm) | 95.5000 |
| Distance Between Base And Center (Decimal Inch) | 3.7600 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 0.900 |
| Flange Thickness (Decimal Inch) | 0.5118 |
| Type | 4Bolt Set Scrw Econ Seal Met |
| Inside Diameter (mm) | 25.0000 |
| Inside Diameter (Decimal Inch) | 0.9843 |
| Overall Length (Decimal Inch) | 3.7598 |
| Overall Height (Decimal Inch) | 1.5157 |
| Static Load Capacity | 1760.0 |
| Dynamic Load Capacity (Lb.) | 3150 |
| Distance Between Base And Center (mm) | 95.5000 |
| Distance Between Base And Center (Decimal Inch) | 3.7600 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 0.900 |
| Flange Thickness (Decimal Inch) | 0.5118 |
| MSC Part # | 57131666 |
| Mfr Part # | PCJY25 |
| Country of Origin Country of Origin is subject to change | Vietnam |
