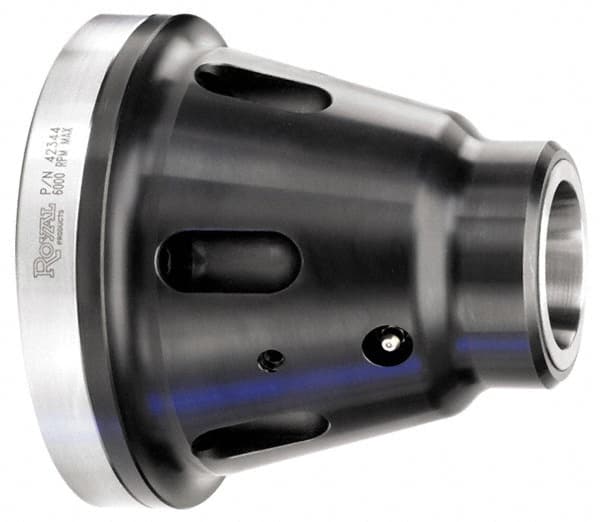

1-1/16″ Max Capacity 140mm Spindle 5C Lathe Collet Chuck Drawbar Actuator, 2.43″ Nose Diam, 4.45″ OAL, 0.0002″ TIR, 3.45″ Projection
Item #: 00075275
Brand: Royal Products
Model #: 42336
Product Specifications
| Collet System | 5C |
| Spindle Size | 140 mm |
| Actuator Type | Drawbar |
| Maximum Collet Capacity (Inch) | 1-1/16 |
| Projection (Decimal) | 3.4500 |
| Overall Length (Decimal) | 4.45 in; 4.4500 |
| Through Coolant | Nonthrough Coolant |
| Maximum RPM | 6000 RPM |
| Nose Diameter (Decimal) | 2.4300 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
