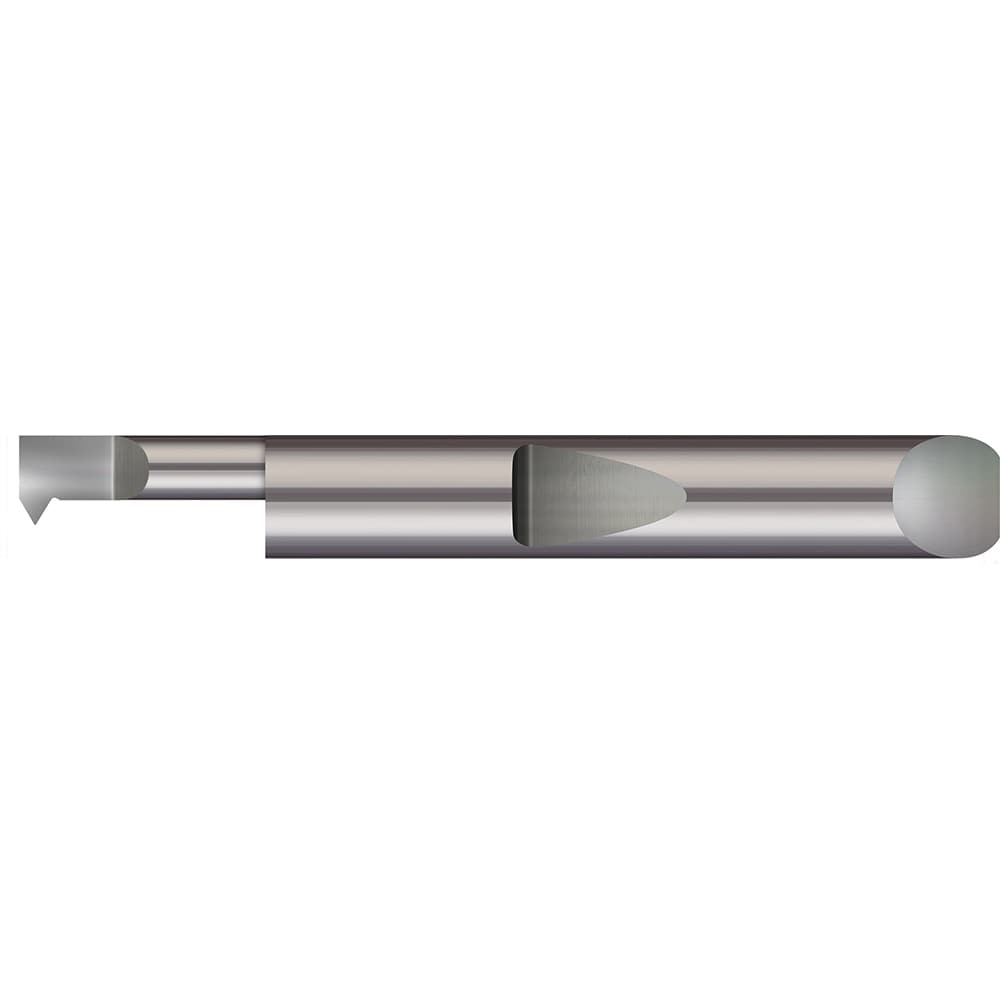

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 60; Threading Diameter (Decimal Inch): 0.0700; Cutting Depth (Decimal Inch): 0.3500; Maximum Threads Per Inch: 56
Item #: 84676816
Brand: Micro 100
Model #: QIT-060350
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.0700 |
| Cutting Depth (Decimal Inch) | 0.3500 |
| Maximum Threads Per Inch | 56 |
| Minimum Threads Per Inch | 28 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Thread Direction | Right Hand |
| Projection from Edge (mm) | 0.50 |
| Projection from Edge (Decimal Inch) | 0.0200 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Manufacturer's Part Number | QIT-060350 |
| Maximum Reach (Decimal Inch) | 0.3500 |
| Coating/Finish | Uncoated |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
