MR Hydraulic Cylinder

Short Type Non Through Hole Rotary Hydraulic
  • Light weight design can reduce the spindle loading for vertical lathe application.
  • Built-in check valve and proximity switch brackets.
  • Developed for rear locking installation.
Piston
Dia.
(mm)
Piston Area
(cm²)
Max. Draw Bar Force
kN(kgf)
Piston
Stroke
(mm)
Max.
Operating
Pressure
MPa(kgf / cm²
Max.
Speed
(r.p.m.)
Moment Of
Inertia
I
(kg.m²)
Weight
(kg)
Total
Leakage
L/min
SPEC Part Number Price Each
Push Side Pull Side Push Side Pull Side
150 171.1 156.7 72(7342) 66(6730) 35 4.5(45.9) 5500 0.043 12.8 0.8 MR15035
Call or Email
200 310 286 146(14887) 134(13664) 60 4.9(50) 5500 0.55 49 2 MR20060
Call or Email
250 481.5 453.6 227(23147) 214(21822) 60 4.9(50) 2000 0.81 72 2 MR25060
Call or Email

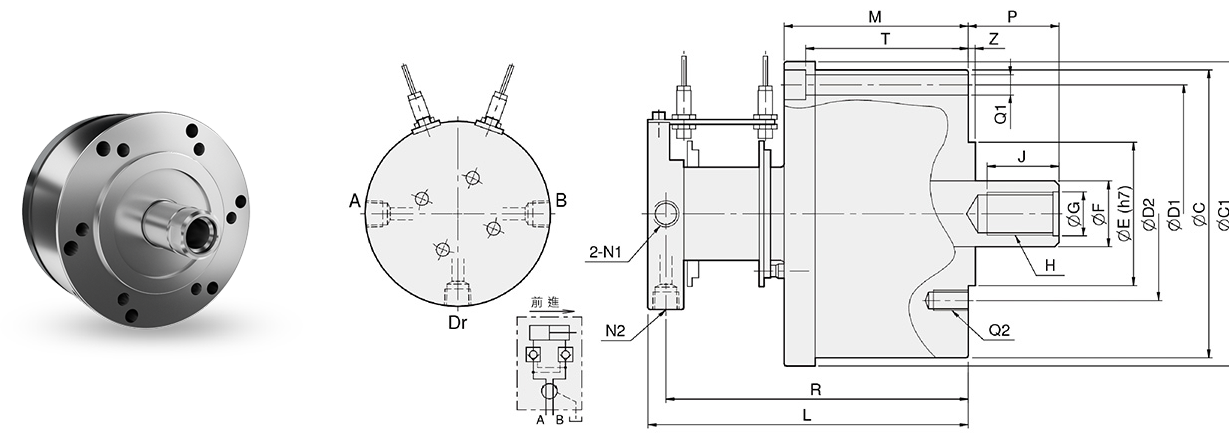

C C1 D1 D2 E
(h7)
F G H J L M N1 N2 P
max.
P
min.
Q1 Q2 R T Z DIM Part Number Price Each
202 204 180 130 110 45 31 M30x3.5 45 175 95 PT 3/8" PT 1/4" 61 26 6-Ø13 12-M12 163 82 5 MR15035 Call or Email
250 255 225 145 120 55 37 M36x4.0 60 270 156 PT 1/2" PT 1/2" 85 25 6-Ø17 6-M16 255 140 6 MR20060 Call or Email
300 305 275 220 160 65 44 M42x3.0 60 280 168 PT 1/2" PT 1/2" 85 25 6-Ø17 6-M20 265 150 6 MR25060 Call or Email
