Type CS Short Series Bushings

TYPE CS SHORT SERIES BUSHINGS
Similar to the “C” Style bushing, but with a shorter overall length. Designed for universal use on all CNC turning machines. To adapt a wide variety of boring bars, drills, reamers and shank type tools.
SPECIFICATIONS:
Material: ALLOY STEEL 8620
Hardness Data: Rc 55-57 for longer tool life Case Hardened and Ground Concentric OD & ID
Axial Concentricity: OD & ID- 0.002”
Tolerance: H6 & g6 in grinding the OD & ID
Prices are pulled from our database in real time. Press Add button to see product price.

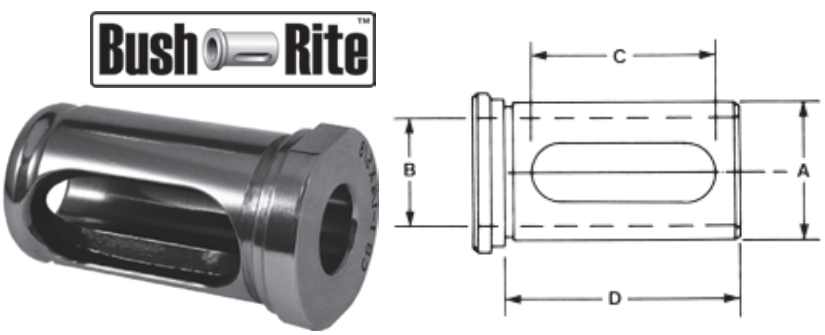

A
O.D.
C Slot Length D Length Under Head B
I.D.
Part Number
3/4” 1-1/8” 1-1/2” 1/4” TBCS-07-0250-B
5/16” TBCS-07-0312-B
3/8” TBCS-07-0375-B
1/2” TBCS-07-0500-B
1” 1-3/8” 1-3/4” 1/4” TBCS-10-0250-B
5/16” TBCS-10-0312-B
3/8” TBCS-10-0375-B
1/2” TBCS-10-0500-B
5/8” TBCS-10-0625-B
3/4” TBCS-10-0750-B
1-1/4” 1-3/4”” 2-1/8” 3/8” TBCS-12-0375-B
1/2” TBCS-12-0500-B
5/8” TBCS-12-0625-B
3/4” TBCS-12-0750-B
7/8” TBCS-12-0875-B
1” TBCS-12-1000-B
1-1/2” 2-1/8” 2-1/2” 3/8” TBCS-15-0375-B
1/2” TBCS-15-0500-B
5/8” TBCS-15-0625-B
3/4” TBCS-15-0750-B
7/8” TBCS-15-0875-B
1” TBCS-15-1000-B
1-1/4” TBCS-15-1250-B
