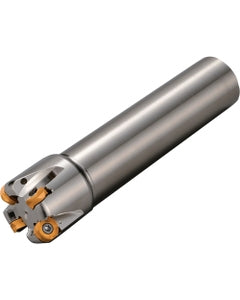

MRW 2000W150125T RAD-8 Series, Standard Length Shank, Radius End Mill
Item #: KY96THN06036
Brand: Kyocera Precision Tools
Model #: THN06036
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 2″ |
| Functional Length (LF) | 4.2661″ |
| Cutting Diameter (DC) | 2″ |
| Usable Length (LU) | 0.2362″ |
| Cutting Diameter Maximum (DCX) | 2″ |
| Flute Count (NOF) | 5 |
| Cutting Item Count (CICT) | 5 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.2362″ |
| Style | MRW |
| Overall Length (OAL) | 4.2661″ |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon |
| Series/List # | MRW |
| Application | Contouring | Facing | Plunging | Profiling | Shouldering |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Model Number | 8838429 |
| Master Insert Identification (MIID) | ROMU1204M0ER-GM | ROMU1204M0ER-SM | ROMU1204M0ER-GH |
| Body Material | Steel |
| Weight of Item (WT) | 2.758 |
| Shank Length (LS) | 2.6913″ |
| Head Length (LH) | 1.5748″ |
