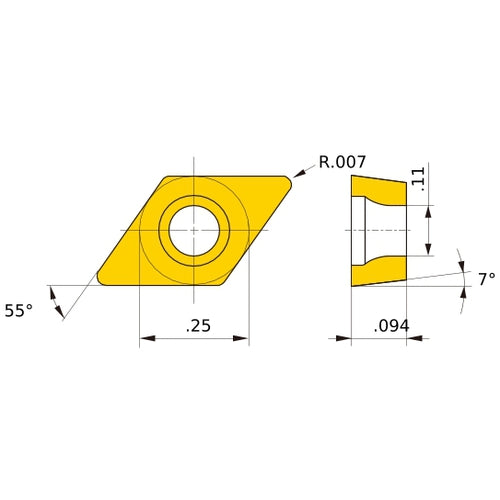

DCGT21.50.5M MP9005 INS
Item #: MB0210576205
Brand: Mitsubishi Materials USA
Model #: 10576205
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Grade | MP9005 |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 2.8 mm |
| Insert Style | DCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.18 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 21.50.5 |
| Chip Breaker Type | FS |
| Insert Thickness (S) | 2.38 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | MP9005 |
| Cutting Edge Material | Carbide |
