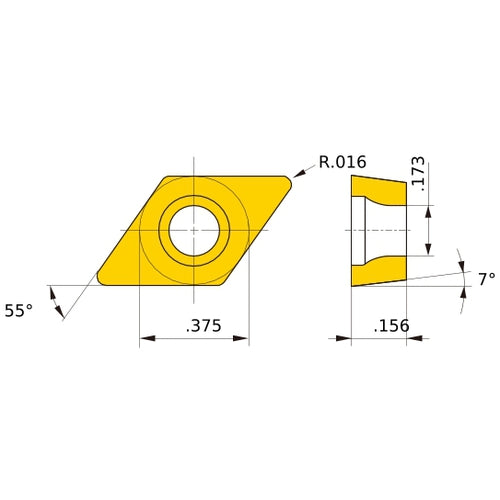

DCGW 32.51 flat_top BC8130, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB0110565193
Brand: Mitsubishi Materials USA
Model #: 10565193
| Product Specifications | |
|---|---|
| Applicable Material | Hard Materials |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | DCGW |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 32.51 |
| Chip Breaker Type | flat_top |
| Insert Thickness (S) | 3.97 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | BC8130 |
| Cutting Edge Material | CBN |
| Cutting Edge Effective Length (LE) | 2.1 mm |
| Grade | BC8130 |
