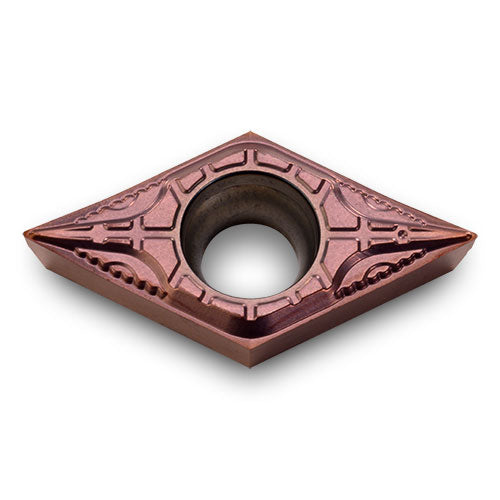

DCGT21.50.5M-SL-F TT4410
Item #: IC066335954
Brand: Ingersoll
Model #: 6335954
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Depth of Cut Maximum (APMX) | 0.01″ |
| Corner Radius (RE) | 0.008″ |
| Min. Turning Feed (ft(min)) | 0.0008″ |
| Insert Size | 21.50.5 |
| Max. Turning Feed (ft(max)) | 0.0039″ |
| Cutting Edge Length (L) | 0.303″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094″ |
| Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 55 Degrees |
| Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.11″ |
| Body Material | Carbide |
| Min D.O.C. | 0.001″ |
