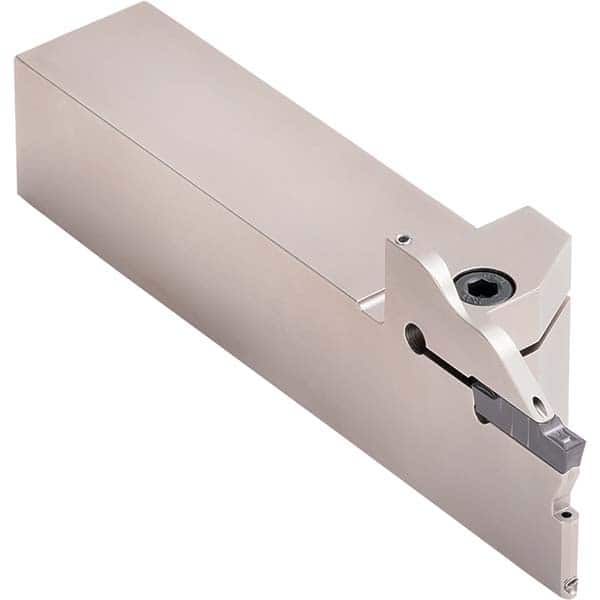

Kyocera - Indexable Grooving Toolholders Internal or External: External Toolholder Type: NonFace Grooving
Item #: 16390577
Brand: Kyocera
Model #: 8864885
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Left Hand ; Maximum Depth of Cut: 0.7874 ; Maximum Depth of Cut (Inch): 0.7874 ; Maximum Depth of Cut (Decimal Inch): 0.7874
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut | 0.7874 |
| Maximum Depth of Cut (Inch) | 0.7874 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 127.0000 |
| Overall Length (Decimal Inch) | 5.00000 |
| Toolholder Style | KGD-JCT |
| Insert Compatibility | GDM3 , GDMS3 , GDG3 , GDGS3 , GDM4 , GDMS4 , GDG4 , GDGS4 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | KGD (Integral, Coolant-Through) |
| Through Coolant | Yes |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 24.18 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9520 |
| Head Height (Inch) | 1.0000 |
| Head Height (Decimal Inch) | 25.4000 |
| Head Length (mm) | 39.00 |
| Head Length (Decimal Inch) | 1.5354 |
| Manufacturers Catalog Number | KGDL163T20JCT |
| ISO Number | KGDL16-3T20JCT |
| Toolholder Material | Steel |
| Series | KGD (Integral, Coolant-Through) |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Insert Hand | Neutral |
| OverallLength (mm) | 127.0000 |
| Overall Length (Decimal Inch) | 5.00000 |
