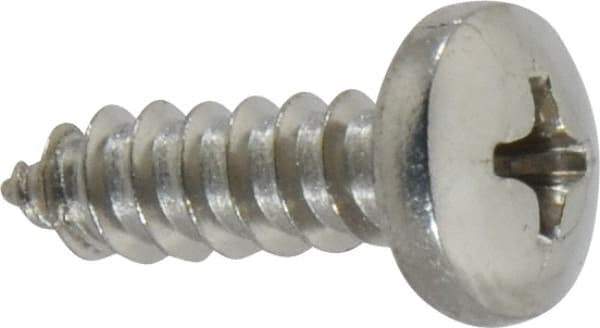

Value Collection - #10 Pan Head Phillips Sheet Metal Screw - Stainless Steel, 5/8" Length Under Head, ASME B18.6.3 & ASME B18.6.4, Grade 18-8
Item #: 87923264
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Pan head types have cylindrical heads with rounded edges and flat bearing surfaces. Their low head height and large diameter provide increased driving power.
Phillips drive types have a cross-shaped slot and are used with Phillips drivers.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Type AB screws have the sharp, locating point of type A screws and the thread size of type B screws. They are used to cut threads in thin sheet metal.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | Pan |
| Screw Size | #10 |
| Length (Inch) | 5/8 |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Point Type | Type AB |
| Length Measurement Type | Length Under Head |
| Phillips Drive Size | #2 |
| Fastener Standard | ASME B18.6.3; ASME B18.6.4 |
