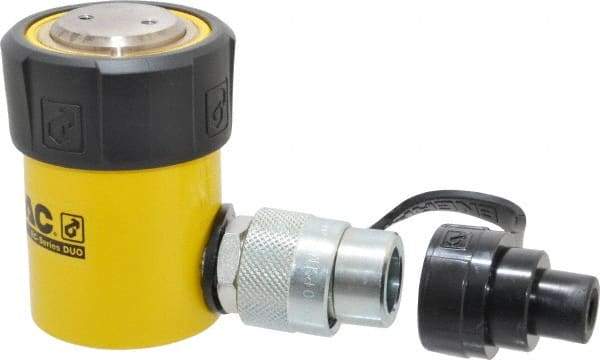

Enerpac - 10 Ton, 1" Stroke, 2.24 Cu In Oil Capacity, Portable Hydraulic Single Acting Cylinder - 2.24 Sq In Effective Area, 3.53" Lowered Ht., 4.53" Max Ht., 1.69" Cyl Bore Diam, 1.5" Plunger Rod Diam, 10,000 Max psi
Item #: 80012727
Brand: Enerpac
Model #: RC101
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 10 |
| Piston Stroke (Decimal Inch) | 1.00 |
| Cylinder Bore Diameter (Decimal Inch) | 1.69 |
| Lowered Height | 3.53 |
| Oil Capacity | 2.24 |
| Effective Area | 2.24 |
| Maximum Height (Decimal Inch) | 4.53 |
| Outside Diameter (Inch) | 2-1/4 |
| Plunger Diameter | 1.50 |
| Base To Inlet Port (Inch) | 3/4 |
| Plunger Internal Thread Size | 10-24 |
| Plunger Internal Thread Length | 0.25 |
| Collar Thread | 2-1/4 - 14 |
| Collar Thread Length (Inch) | 1.06 |
| Base Mounting Holes Bolt Circle (Inch) | 1-9/16 |
| Two Base Mounting Holes Thread Size | 5/16-18 |
| Base Mounting Hole Thread Depth (Inch) | 0.50 |
| Maximum Pressure (psi) | 10000 |
