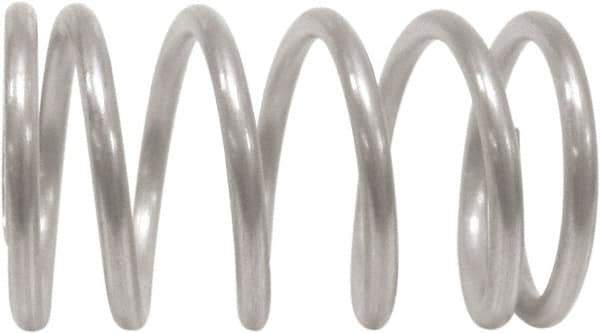

Associated Spring Raymond - 30mm OD, 5mm Wire, 87.5mm Free Length, Compression Spring - 227.64 Lb Spring Rating, 1308.51 N Max Work Load, Stainless Steel
Item #: 69085348
Brand: Associated Spring Raymond
Model #: D23800
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Compression |
| Outside Diameter (mm) | 30 |
| Outside Diameter (Decimal Inch) | 1.1810 |
| Free Length (mm) | 87-1/2 |
| Free Length (Decimal Inch) | 3.4450 |
| Spring Rate Pounds per Inch (Pounds) | 227.6400 |
| Maximum Work Load (N) | 1308.51000977 |
| Solid Height (mm) | 52-1/2 |
| Solid Height (Decimal Inch) | 2.0670 |
| Material | Stainless Steel |
| Wire Size (mm) | 5 |
| Wire Size (Decimal Inch) | 0.1970 |
