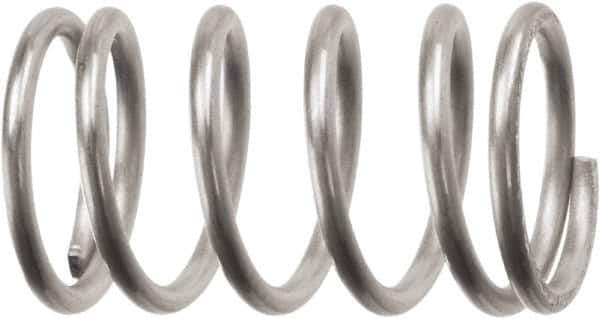

Associated Spring Raymond - 31.12mm OD, 3.18mm Wire, 127mm Free Length, Compression Spring - 17.66 Lb Spring Rating, 172.49 N Max Work Load, Stainless Steel
Item #: 69075695
Brand: Associated Spring Raymond
Model #: C12251255000X
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Compression |
| Outside Diameter (mm) | 31.12 |
| Outside Diameter (Decimal Inch) | 1.2250 |
| Free Length (mm) | 127 |
| Free Length (Decimal Inch) | 5 |
| Spring Rate Pounds per Inch (Pounds) | 17.6600 |
| Maximum Work Load (N) | 172.49000549 |
| Solid Height (mm) | 47.37 |
| Solid Height (Decimal Inch) | 1.8650 |
| Material | Stainless Steel |
| Wire Size (mm) | 3.18 |
| Wire Size (Decimal Inch) | 1/8 |
