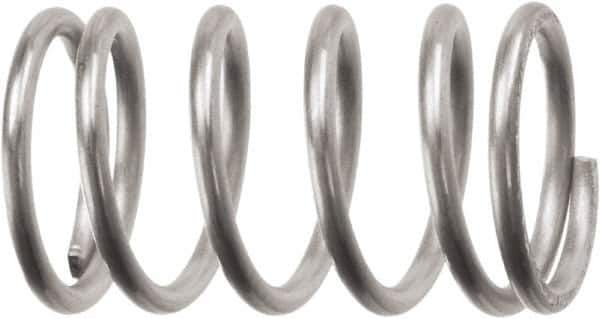

Associated Spring Raymond - 31.12mm OD, 4.88mm Wire, 4-1/2" Free Length, Compression Spring - 116.54 Lb Spring Rating, 504.4 N Max Work Load, Stainless Steel
Item #: 69074482
Brand: Associated Spring Raymond
Model #: C12251924500S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Compression |
| Outside Diameter (mm) | 31.12 |
| Outside Diameter (Decimal Inch) | 1.2250 |
| Free Length (mm) | 114.30 |
| Free Length (Decimal Inch) | 4-1/2 |
| Spring Rate Pounds per Inch (Pounds) | 116.5400 |
| Maximum Work Load (N) | 504.39999390 |
| Solid Height (mm) | 73.96 |
| Solid Height (Decimal Inch) | 2.9120 |
| Material | Stainless Steel |
| Wire Size (mm) | 4.88 |
| Wire Size (Decimal Inch) | 0.1920 |
