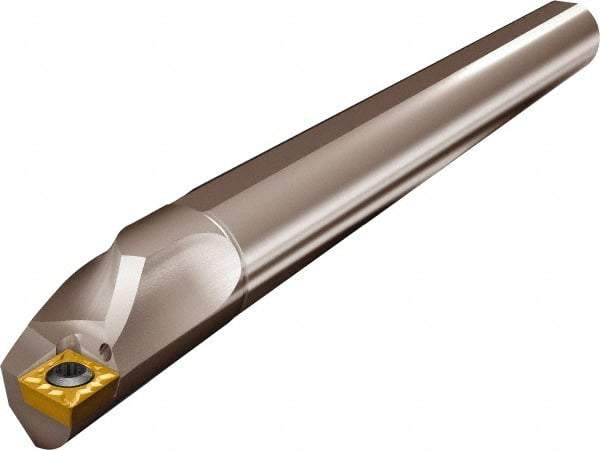

Kyocera - 7mm Min Bore Diam, 100mm OAL, 10mm Shank Diam, A/S-SCLC-AE Indexable Boring Bar - 32mm Max Bore Depth, CCET 1411.., CCGT 1411.., CCGW 1411.., CCMW 1411.. Insert, Screw Holding Method
Item #: 68928803
Brand: Kyocera
Model #: 8828987
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A/S-SCLC-AE |
| Minimum Bore Diameter (mm) | 7.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.2756 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 32.00 |
| Maximum Bore Depth (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | CCET 1411..; CCGT 1411..; CCGW 1411..; CCMW 1411.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 3.50 |
| Center to Cutting Edge (Decimal Inch) | 0.1378 |
| Insert Thickness (Decimal Inch) | 0.0710 |
| Insert Inscribed Circle (Decimal Inch) | 0.1690 |
| Rake Angle | -13 |
| Complete Insert Compatibility | CCET 1411013MR/L-FSF; CCET 141101R/L-FSF; CCET 141102MR/L-F; CCET 141102MR/L-FSF; CCET 141102R/L-FSF; CCET 141105MR/L-F; CCET 141105MR/L-FSF; CCET 141105R/L-FSF; CCET 14111MR/L-F; CCET 14111MR/L-FSF; CCET 14111R/L-FSF; CCGT 1411013MR/L-F; CCGT 141101R/L-F |
| Toolholder Material | Steel |
