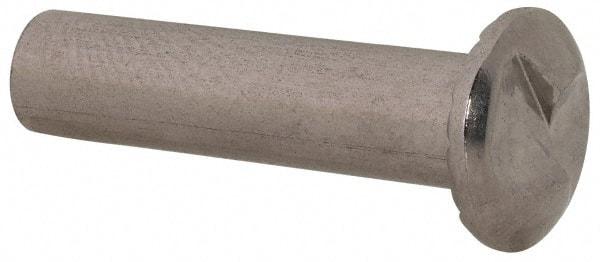

Value Collection - #10-24 Thread Screw & Barrel, Truss Head, One Way Drive, Stainless Steel Sex Bolt & Binding Post - 3/4" Length Under Head, 3/4" Long Barrel, Grade 18-8
Item #: 67754044
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Truss head types have low-profile heads that are slightly rounded. They have flat bearing surfaces that prevent pull-through and are ideal for low-clearance applications.
One-way drive types can be driven in one direction only. They are installed with a flat-blade driver that will cam out if used in the opposite direction to remove the fastener.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Sex Bolt Type | Screw & Barrel |
| Screw Head Type | Truss |
| Drive Type | One Way |
| System of Measurement | Inch |
| Thread Size | #10-24 |
| Screw Length (Inch) | 3/4 |
| Barrel Length (Inch) | 3/4 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Thread Standard | UNC |
| Screw Length Measurement Type | Length Under Head |
| Head Diameter (Decimal Inch) | 0.4250 |
| Barrel Head Type | Truss |
| Barrel Diameter (Inch) | 1/4 |
| PartitionSize | 1 |
