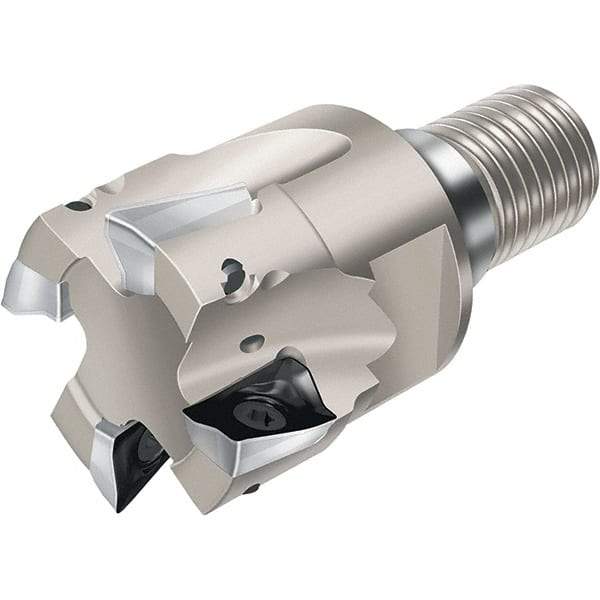

Walter - 50mm Cut Diam, 11.7mm Max Depth of Cut, Indexable Square Shoulder End Mill - Multiple Insert Styles, T45 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 53056347
Brand: Walter
Model #: 5044332
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Modular Connection |
| Modular Connection Size | T45 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 11.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.4606 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F4042 |
| Number of Flutes | 4 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Insert Compatibility | ADGT 120416R-D67; ADGT 120430R-D67; ADGT 1204PER-D51; ADGT 1204PER-D56; ADGT 1204PER-D67; ADGT 1204PER-F56; ADGT 1204PER-G77; ADHT 120416R-G88; ADHT 120425R-G88; ADHT 120430R-G88; ADHT 120440R-G88; ADHT 1204PER-G88; ADMT 120404R-F56; ADMT 120408R-D56; ADM |
| Shank Length (Decimal Inch) | 1.3780 |
| Shank Length (mm) | 35.00 |
| Maximum RPM | 10000 |
