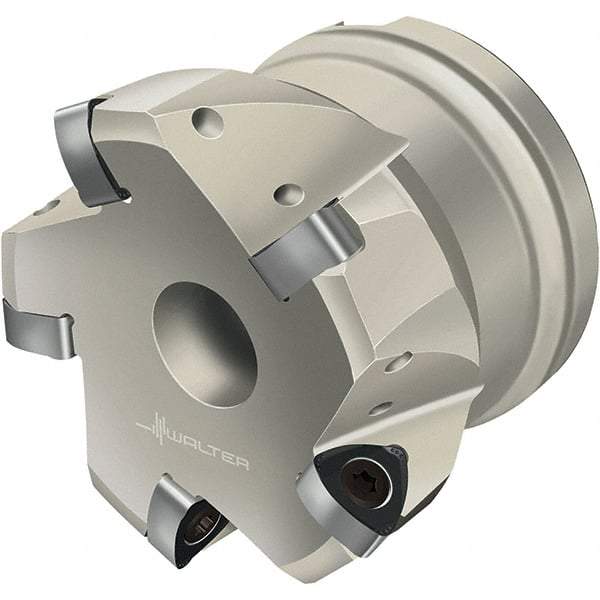

Walter - 50.8mm Cut Diam, 19.05mm Arbor Hole, 1mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 5 Inserts, P23696 Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series Xtra-tec
Item #: 53036349
Brand: Walter
Model #: 5873918
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | P23696 |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | F4030 |
| Number of Flutes | 5 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.3940 |
| Maximum Insert Radius (Decimal Inch) | 0.0470 |
| Complete Insert Compatibility | P23696-1.0 |
