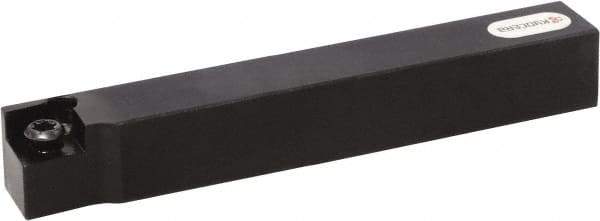

Kyocera - SCLN, Right Hand Cut, 95° Lead Angle, 16mm Shank Height x 16mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, CN.. 242.. Insert Compatibility, Series SCLN
Item #: 50480672
Brand: Kyocera
Model #: 8824617
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SCLN |
| Rake | Negative |
| Rake Angle | -6 (Axial); -6 (Radial) |
| Series | SCLN |
| Lead Angle | 95 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | CN.. 242.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 15.00 |
| Head Length (Decimal Inch) | 0.5906 |
| Insert Inscribed Circle (Decimal Inch) | 0.2950 |
| Insert Width (Inch) | 1/8 |
| Insert Width (Decimal Inch) | 0.1250 |
