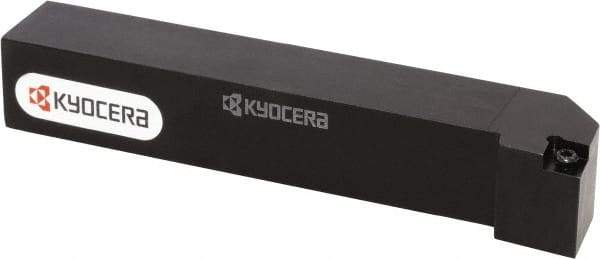

Kyocera - SCLC, Left Hand Cut, 95° Lead Angle, 16mm Shank Height x 16mm Shank Width, Neutral Rake Indexable Turning Toolholder - 100mm OAL, CC.. 325.. Insert Compatibility, Series SCLC
Item #: 50480607
Brand: Kyocera
Model #: 8806750
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SCLC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | SCLC |
| Lead Angle | 95 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | CC.. 325.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 15.00 |
| Head Length (Decimal Inch) | 0.5906 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
