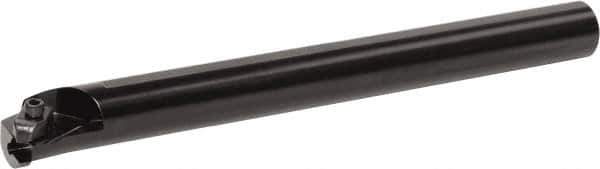

Kyocera - A-KKC, Internal, Right Hand, 0.14" Max Depth of Cut, 0.189 to 0.31" Groove Width, Indexable Grooving Tool Holder - KC.. 2 Insert Compatibility, 8" OAL, Through Coolant
Item #: 50479310
Brand: Kyocera
Model #: 8604014
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1400 |
| Minimum Groove Width (Decimal Inch) | 0.1890 |
| Maximum Groove Width (Decimal Inch) | 0.3100 |
| Overall Length (Decimal Inch) | 8.0000 |
| Toolholder Style | A-KKC |
| Insert Compatibility | KC.. 2 |
| Series | A-KKC |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp or Screw |
| Minimum Hole Diameter (Decimal Inch) | 1.1250 |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Manufacturers Catalog Number | A12RKKCR2 |
| Complete Insert Compatibility | KCG 2; KCGP 2; KCRP-2 |
| Minimum Bore Diameter (Decimal Inch) | 1.1250 |
| Shank Diameter (Decimal Inch) | 0.7500 |
