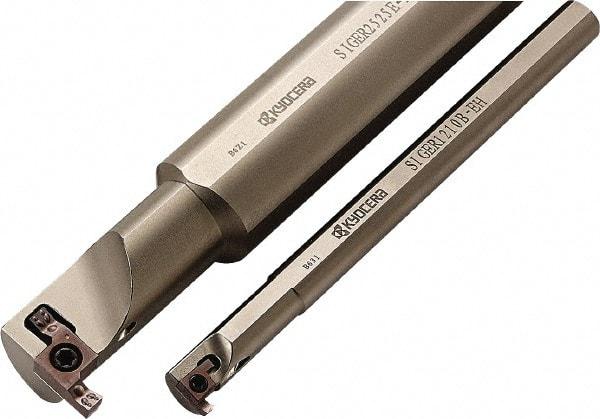

Kyocera - Sige, Internal, Right Hand, 0.255" Max Depth of Cut, 0.039 to 0.197" Groove Width, Indexable Grooving Tool Holder - Multiple Insert Compatibility, 0.96" Shank Width, 7.88" OAL, Through Coolant
Item #: 50424985
Brand: Kyocera
Model #: 8825473
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2550 |
| Minimum Groove Width (Decimal Inch) | 0.0390 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Overall Length (Decimal Inch) | 7.8800 |
| Toolholder Style | Sige |
| Insert Compatibility | GE.. 031..; GE.. 041..; GE.. 047..; GE.. 058..; GE.. 062..; GE.. 072..; GE.. 078..; GE.. 088..; GE.. 094..; GE.. 097..; GE.. 100..; GE.. 105..; GE.. 110..; GE.. 120..; GE.. 122..; GE.. 125..; GE.. 140..; GE.. 145..; GE.. 150..; GE.. 170..; GE.. 185..; GE. |
| Shank Width/Diameter (Decimal Inch) | 0.9600 |
| Series | Sige |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Coolant Hole Diameter (Decimal Inch) | 0.1960 |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (Decimal Inch) | 1.0000 |
| Maximum Hole Depth (Decimal Inch) | 1.7720 |
| Maximum Bore Depth (Decimal Inch) | 1.7720 |
| Center to Cutting Edge (Decimal Inch) | 0.6140 |
| Head Length (Decimal Inch) | 1.7720 |
| Shank Length (Decimal Inch) | 6.1080 |
| Manufacturers Catalog Number | SIGER1616EEH |
| Height to Shank Top (Decimal Inch) | 0.9600 |
| Complete Insert Compatibility | GER 150-010EM; GER 200-010EM; GER 250-020EM; GER 300-020EM; GER 350-020EM; GER 400-020EM; GER 450-020EM; GER 500-020EM; GER/L 100-005E; GER/L 150-010E; GER/L 170-010E; GER/L 185-010E; GER/L 195-010E; GER/L 200-010E; GER/L 225-010E; GER/L 230-020E; GER/L 2 |
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
