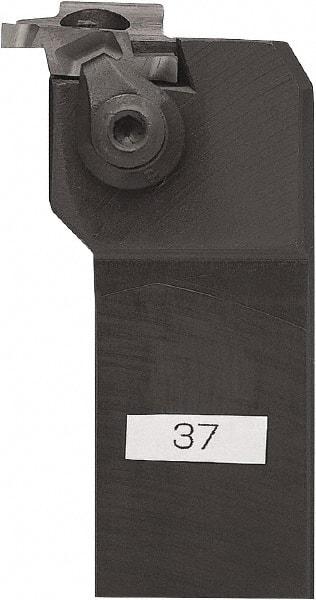

Kyocera - GFVT, External, Left Hand, 2.2mm Max Depth of Cut, 2.5 to 6mm Groove Width, Indexable Grooving Tool Holder - GVF-AA Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 50419498
Brand: Kyocera
Model #: 8810966
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Maximum Depth of Cut (mm) | 2.20 |
| Minimum Groove Width (Decimal Inch) | 0.0984 |
| Minimum Groove Width (mm) | 2.50 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | GFVT |
| Insert Compatibility | GVF-AA |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | GFVT |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 8.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.3150 |
| igrvh Maximum Bore Depth (mm) | 14.00 |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Height (Decimal Inch) | 1.0039 |
| Head Height (mm) | 25.50 |
| Head Length (mm) | 14.00 |
| Head Length (Decimal Inch) | 0.5512 |
| Shank Length (mm) | 111.00 |
| Shank Length (Decimal Inch) | 4.3701 |
| Manufacturers Catalog Number | GFVTL2020K08AA |
| Complete Insert Compatibility | GFVL/R 100-005AA; GFVL/R 200-005AA; GFVL/R 300-005AA |
| Minimum BoreDiameter (mm) | 8.00 |
