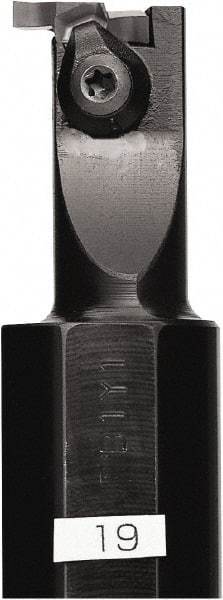

Kyocera - GIV, Internal, Right Hand, 3.2mm Max Depth of Cut, 0.031 to 0.122" Groove Width, Indexable Grooving Tool Holder - GV.. 020B Insert Compatibility, 15.2mm Shank Width, 180mm OAL
Item #: 50394055
Brand: Kyocera
Model #: 8806287
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1260 |
| Maximum Depth of Cut (mm) | 3.20 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Maximum Groove Width (Decimal Inch) | 0.1220 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Toolholder Style | GIV |
| Insert Compatibility | GV.. 020B |
| Shank Width/Diameter (mm) | 15.20 |
| Shank Width/Diameter (Decimal Inch) | 0.5984 |
| Series | GIV |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Center to Cutting Edge (mm) | 11.70 |
| Center to Cutting Edge (Decimal Inch) | 0.4606 |
| Manufacturers Catalog Number | GIVR20162BE |
| Complete Insert Compatibility | GVR/L 145-020B; GVR/L 185-020B; GVR/L 200-020B; GVR/L 225-020B; GVR/L 230-020B; GVR/L 250-020B; GVR/L 275-020B; GVR/L 280-020B; GVR/L 300-020B; GVR/L 325-020B; GVR/L 340-020B; GVR/L 400-020B |
| Minimum BoreDiameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
