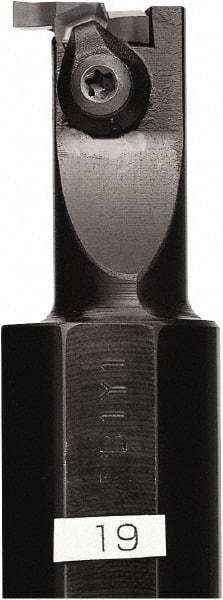

Kyocera - GIV, Internal, Right Hand, 4.5mm Max Depth of Cut, 0.031 to 0.122" Groove Width, Indexable Grooving Tool Holder - GV.. 020C Insert Compatibility, 24mm Shank Width, 220mm OAL
Item #: 50393214
Brand: Kyocera
Model #: 8811121
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (mm) | 4.50 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Maximum Groove Width (Decimal Inch) | 0.1220 |
| Overall Length (mm) | 220.00 |
| Overall Length (Decimal Inch) | 8.6614 |
| Toolholder Style | GIV |
| Insert Compatibility | GV.. 020C |
| Shank Width/Diameter (mm) | 24.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9449 |
| Series | GIV |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Center to Cutting Edge (mm) | 17.50 |
| Center to Cutting Edge (Decimal Inch) | 0.6890 |
| Manufacturers Catalog Number | GIVR32251CE |
| Complete Insert Compatibility | GVR/L 280-020C; GVR/L 300-020C; GVR/L 325-020C; GVR/L 340-020C; GVR/L 400-020C; GVR/L 425-020C; GVR/L 430-020C; GVR/L 460-020C; GVR/L 500-020C |
| Minimum BoreDiameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
