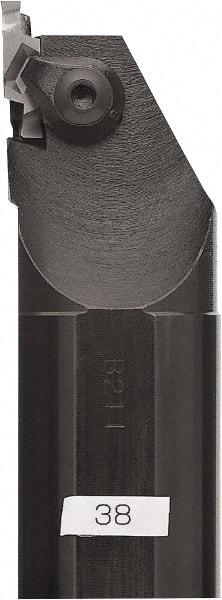

Kyocera - GIFV, External, Right Hand, 8.1mm Max Depth of Cut, 2 to 6mm Groove Width, Indexable Grooving Tool Holder - GVFR/L...C Insert Compatibility, 30mm Shank Width, 250mm OAL
Item #: 50393057
Brand: Kyocera
Model #: 8811092
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3189 |
| Maximum Depth of Cut (mm) | 8.10 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Toolholder Style | GIFV |
| Insert Compatibility | GVFR/L...C |
| Shank Width/Diameter (mm) | 30.00 |
| Shank Width/Diameter (Decimal Inch) | 1.1811 |
| Series | GIFV |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| igrvh Maximum Bore Depth (mm) | 35.00 |
| Center to Cutting Edge (mm) | 16.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Shank Length (mm) | 215.00 |
| Shank Length (Decimal Inch) | 8.4646 |
| Manufacturers Catalog Number | GIFVR5032B502C |
| Complete Insert Compatibility | GVFR/L 350-020C; GVFR/L 350-040C; GVFR/L 400-020C; GVFR/L 400-040C; GVFR/L 500-040C; GVFR/L 550-040C; GVFR/L 600-040C |
| Minimum BoreDiameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
