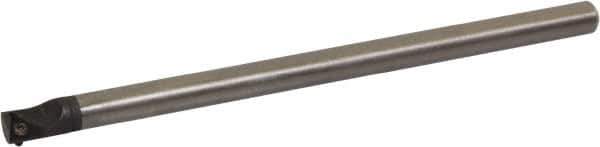

Kyocera - 9mm Min Bore Diam, 143mm OAL, 8mm Shank Diam, C...STXP (B) Indexable Boring Bar - 14mm Max Bore Depth, TPET 1515.., TPGB 1515.., TPGH 1515.., TPGT 1515.., TPMH 1515.. Insert, Screw Holding Method
Item #: 50356864
Brand: Kyocera
Model #: 8802805
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | C...STXP (B) |
| Minimum Bore Diameter (mm) | 9.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3543 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 14.00 |
| Maximum Bore Depth (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 143.00 |
| Overall Length (Decimal Inch) | 5.6299 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | TPET 1515..; TPGB 1515..; TPGH 1515..; TPGT 1515..; TPMH 1515.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 20 |
| Center to Cutting Edge (mm) | 4.60 |
| Center to Cutting Edge (Decimal Inch) | 0.1811 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.1875 |
| Rake Angle | -10 |
| Complete Insert Compatibility | TPET 1515013MFR/L-USF; TPET 1515013MR/L-FSF; TPET 151501FR/L-USF; TPET 151501R/L-FSF; TPET 151502FR/L-USF; TPET 151502MFR/L-USF; TPET 151502MR/L-FSF; TPET 151502R/L-FSF; TPET 151505FR/L-USF; TPET 151505MFR/L-USF; TPET 151505MR/L-FSF; TPET 151505R/L-FSF; T |
| Toolholder Material | Carbide |
