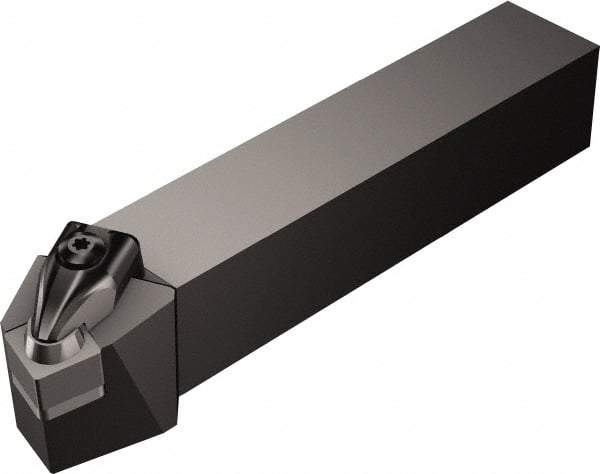

Sandvik Coromant - CSRNR/L, Left Hand Cut, 15° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, SNGN 19 07 12, SNG 653 Insert Compatibility, Series T-Max
Item #: 49617822
Brand: Sandvik Coromant
Model #: 5726097
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CSRNR/L |
| Rake | Negative |
| Series | T-Max |
| Lead Angle | 15 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | SNGN 19 07 12; SNG 653 |
| Insert Holding Method | Top Clamping |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Toolholder Material | Steel |
