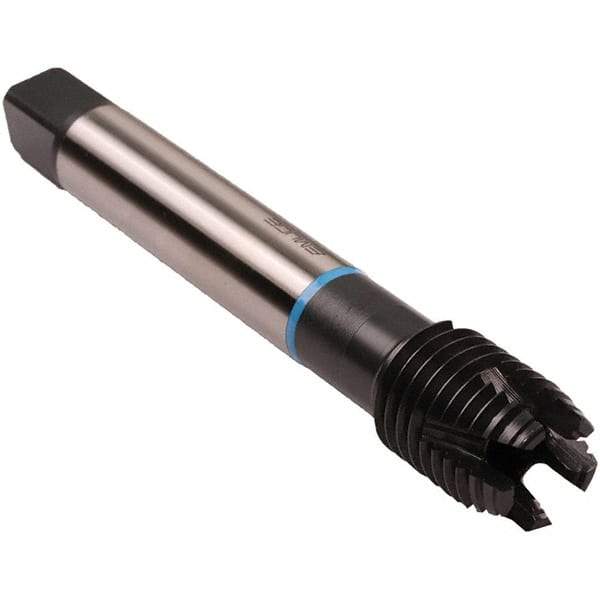

Emuge - 3/4-10 UNC 3BX 5 Flute Nitride/Oxide Finish High Speed Steel Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 4.921" OAL, 1.181" Thread Length
Item #: 47942511
Brand: Emuge
Model #: CU803011.5016
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Nitride/Oxide is used to prevent galling, welding and loading. It is commonly used on low carbon steels, stainless steels and nonferrous metals.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 3/4-10 |
| Class of Fit | 3BX |
| Number of Flutes | 5 |
| Chamfer | Modified Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Nitride/Oxide |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 4.92100 |
| Series/List | CU803011 |
| Thread Length (Decimal Inch) | 1.1810 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Material Application | Cast Iron; Stainless Steel; Steel Alloys |
