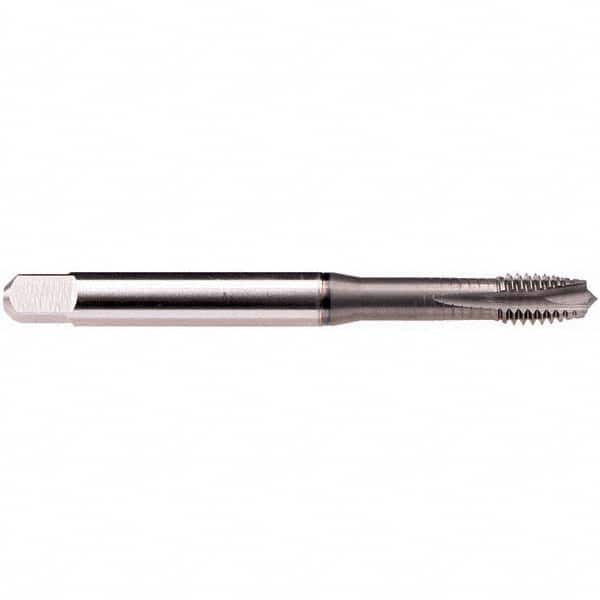

Emuge - #6-32 UNC 2BX 3 Flute GLT-1 Finish PM Cobalt Spiral Point Tap
Item #: 96378252
Brand: Emuge
Model #: BU20A601.5005
Features and Benefits
4P - 4.5P thread size chamfers are used for general purpose applications and designed for efficiently threading through and blind holes.
GLT-1 is a multi-layered coating that offers a hard surface coating and an anti-friction layer for fast and efficient chip removal. It is heat resistant, wear resistant and prevents sliding.GLT-1 is a proprietary coating exclusive to Emuge.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #6-32 |
| Number of Flutes | 3 |
| Chamfer | 4P - 4.5P |
| Class of Fit | 2BX |
| Thread Limit | H4 |
| Finish/Coating | GLT-1 |
| Material | PM Cobalt |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.2047 |
| Overall Length (mm) | 56.00 |
| Oversize | No |
| Thread Standard | UNC |
| Series/List | BU20A601 |
| Neck Length (Decimal Inch) | 0.7874 |
| Style | Spiral Point |
| Tapping Depth (Inch) | 0.4140 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Material Application | Stainless Steel |
| Material Application2 | Steel |
