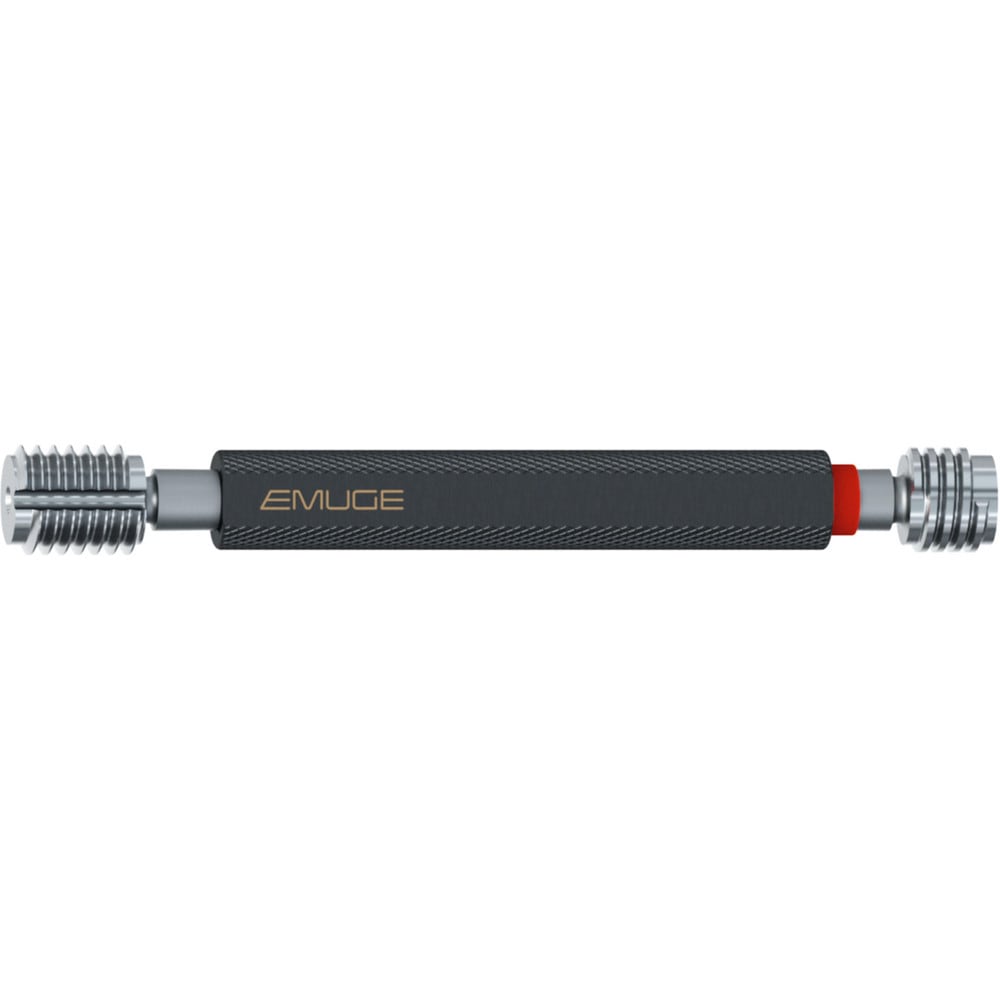

Plug Thread Go/No Go Gages; Go/No Go: Go, No Go; Thread Size: 1-8; Material: Steel; Classification: 3B; Go Pitch Diameter (Inch): 0.9188; Go Pitch Diameter (mm): 23.3380; No Go Pitch Diameter (mm): 23.5050; No Go Pitch Diameter (Decimal Inch): 0.92540
Item #: 02814374
Brand: Emuge
Model #: L0100160.5018
Product Specifications
| Go/No Go | Go; No Go |
| Thread Size | 1-8 |
| Material | Steel |
| Classification | 3B |
| Go Pitch Diameter (Inch) | 0.9188 |
| Go Pitch Diameter (mm) | 23.3380 |
| No Go Pitch Diameter (mm) | 23.5050 |
| No Go Pitch Diameter (Decimal Inch) | 0.92540 |
| Handle Size | 0 |
| Handle Included | Yes |
| Overall Length (Decimal Inch) | 5.5910 |
| Overall Length (mm) | 142.0000 |
| Thread Direction | Left Hand |
| Calibrated | Yes |
| Traceability Certification Included | Yes |
| Standards | NIST; Gauge dimensions according to ANSI/ASME B1.16; DIN2280 |
| Coating/Finish | Bright |
| Single Or Double End | Double |
| Thread Standard | UNC |
| UNSPSC Code | 41111619 |
