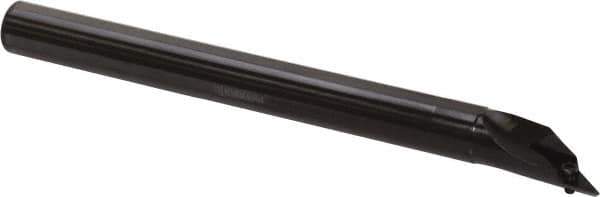

Kyocera - S...SVUB, Left Hand Cut, 93° Lead Angle, 29/32" Shank Height x 29/32" Shank Width, Positive Rake Indexable Turning Toolholder - 120mm OAL, VB.. 22.., VC.. 22.. Insert Compatibility, Series S...SVUB
Item #: 40526162
Brand: Kyocera
Model #: 8813291
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | S...SVUB |
| Rake | Positive |
| Rake Angle | 5 |
| Series | S...SVUB |
| Lead Angle | 93 |
| Shank Width (Decimal Inch) | 0.9060 |
| Shank Height (Decimal Inch) | 0.9060 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Compatibility | VB.. 22..; VC.. 22.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.4130 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
