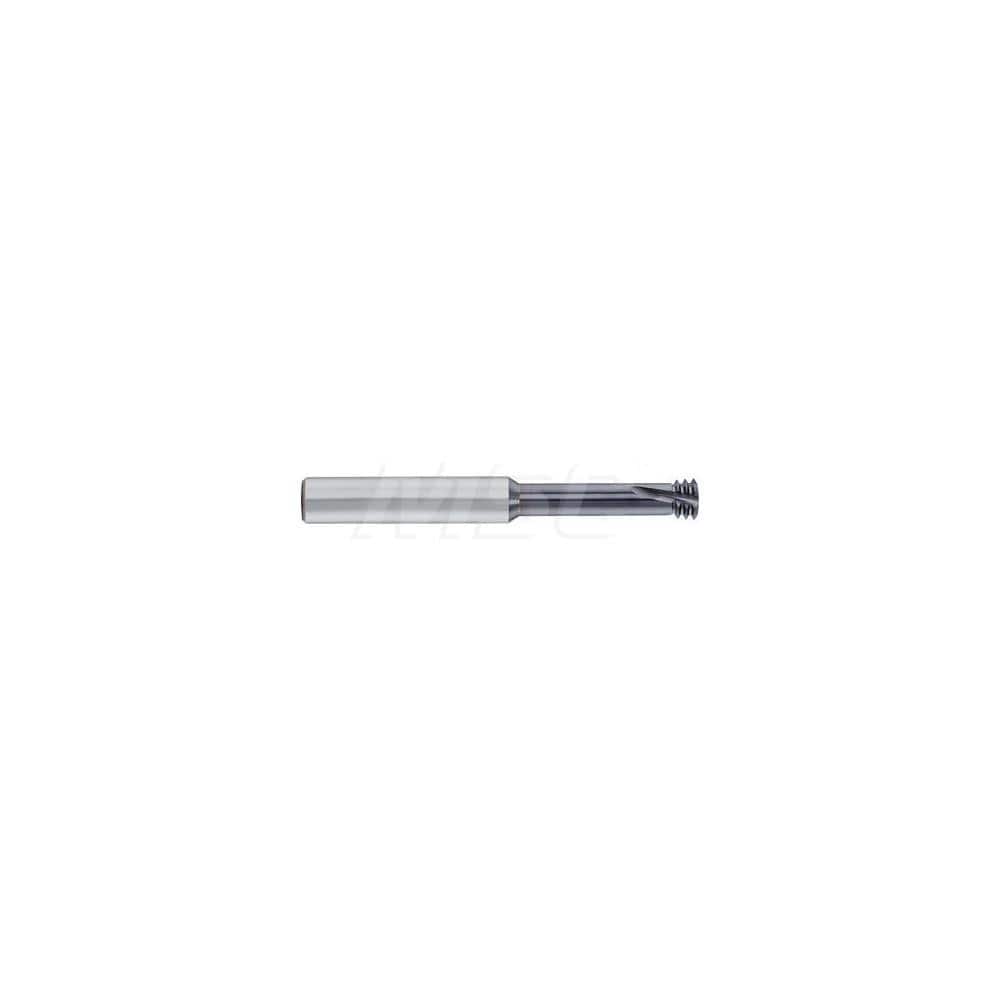

Helical Flute Thread Mill: 5/16-24 & 3/8-24, Internal, 4 Flute, Solid Carbide 24 TPI, 0.2638″ Cut Dia, TiCN Coated
Item #: 20531265
Brand: Guhring
Model #: 9042150079370
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch - 0 Decimals) | 5/16-24;3/8-24 |
| Thread Type | Internal |
| Shank Diameter (mm) | 8.00 |
| Cutting Diameter (mm) | 6.70 |
| Cutting Diameter (Decimal Inch) | 0.2638 |
| Length of Cut (mm) | 3.20 |
| Minimum Nominal Diameter (mm) | 7.00 |
| Overall Length (mm) | 64.00 |
| Thread Standard | UNJF; UNJC |
| Number Of Flutes | 4 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Teeth Per Inch | 24 |
