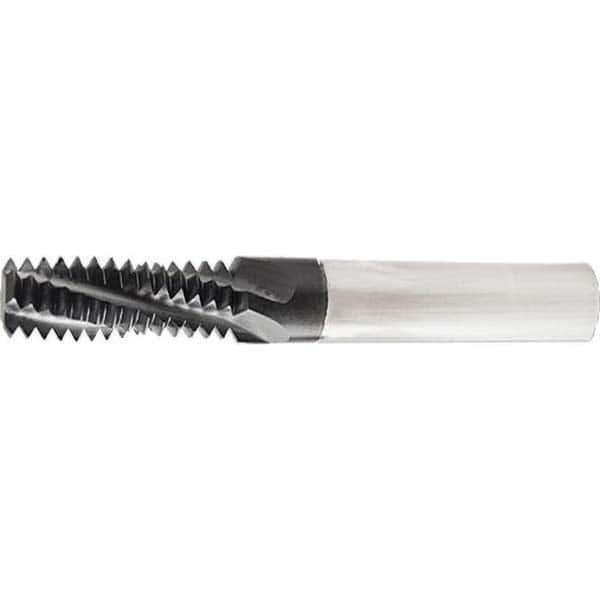

Helical Flute Thread Mill: 1/2-20, Internal & External, 4 Flute, 3/8″ Shank Dia, Solid Carbide 20 TPI, 0.35″ Cut Dia, 7/8″ LOC, TiAlN Coated
Item #: 18102152
Brand: Cleveland
Model #: C95014
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch - 0 Decimals) | 1/2-20 |
| Thread Type | Internal & External |
| Shank Diameter (mm) | 9.52 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (mm) | 8.89 |
| Cutting Diameter (Decimal Inch) | 0.3500 |
| Length of Cut (Inch) | 7/8 |
| Minimum Nominal Diameter (Decimal Inch) | 0.3500 |
| Minimum Nominal Diameter (Inch) | 0.3500 |
| Shank Length (Decimal Inch) | 0.3750 |
| Shank Length (Inch) | 3/8 |
| Flute Direction | Neutral |
| Material Grade | Sub Micrograin |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
| Teeth Per Inch | 20 |
| Product Service Code | 5133 |
