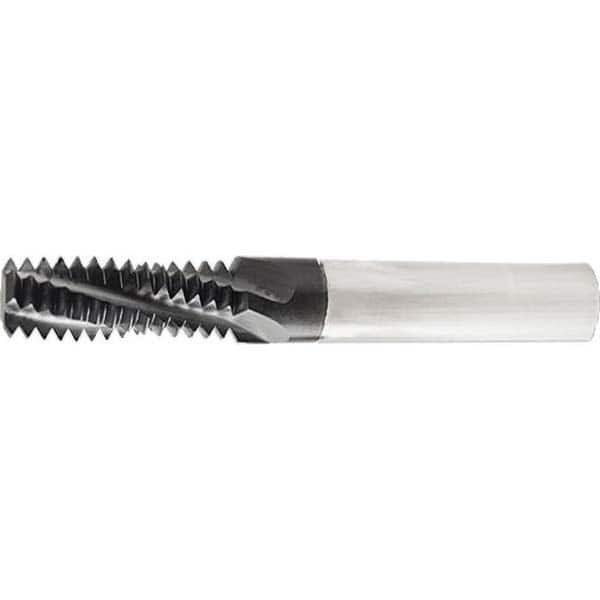

Helical Flute Thread Mill: 3/8-16, Internal & External, 4 Flute, 5/16″ Shank Dia, Solid Carbide 16 TPI, 0.29″ Cut Dia, 3/4″ LOC, TiAlN Coated
Item #: 18101733
Brand: Cleveland
Model #: C95030
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch - 0 Decimals) | 3/8-16 |
| Thread Type | Internal & External |
| Shank Diameter (mm) | 7.94 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Cutting Diameter (mm) | 7.37 |
| Cutting Diameter (Decimal Inch) | 0.2900 |
| Length of Cut (Inch) | 3/4 |
| Minimum Nominal Diameter (Decimal Inch) | 0.2900 |
| Minimum Nominal Diameter (Inch) | 0.2900 |
| Shank Length (Decimal Inch) | 0.3125 |
| Shank Length (Inch) | 5/16 |
| Flute Direction | Neutral |
| Material Grade | Sub Micrograin |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Teeth Per Inch | 16 |
| Product Service Code | 5133 |
