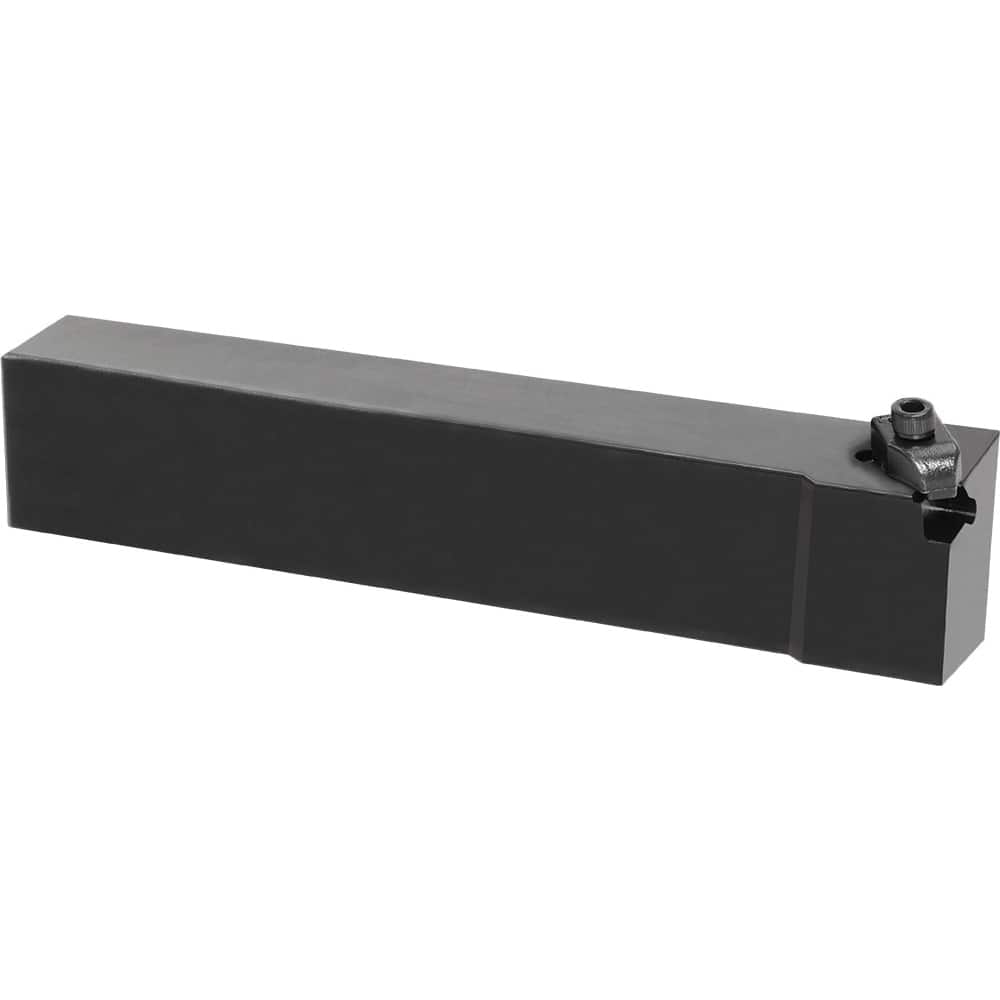

Kyocera - Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: Face Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut: 0.2100 ; Maximum Depth of Cut (Inch): 0.2100 ; Maximum Depth of Cut (Decimal Inch): 0.2100
Item #: 17120726
Brand: Kyocera
Model #: 8604032
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: Face Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut: 0.2100 ; Maximum Depth of Cut (Inch): 0.2100 ; Maximum Depth of Cut (Decimal Inch): 0.2100
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut | 0.2100 |
| Maximum Depth of Cut (Inch) | 0.2100 |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Minimum Groove Width (Decimal Inch) | 0.1240 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Overall Length (Inch) | 4.5 |
| Toolholder Style | KKCE |
| Insert Compatibility | KCFP_3... |
| Shank Height (Inch) | 0.75 |
| Shank Width/Diameter (Inch) | 0.75 |
| Series | Cera-Notch |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1250 |
| Head Length (Inch) | 0.75 |
| Manufacturers Catalog Number | KKCEL123B |
| ISO Number | KKCEL123B |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Cutting Width (mm) | 4.800 |
