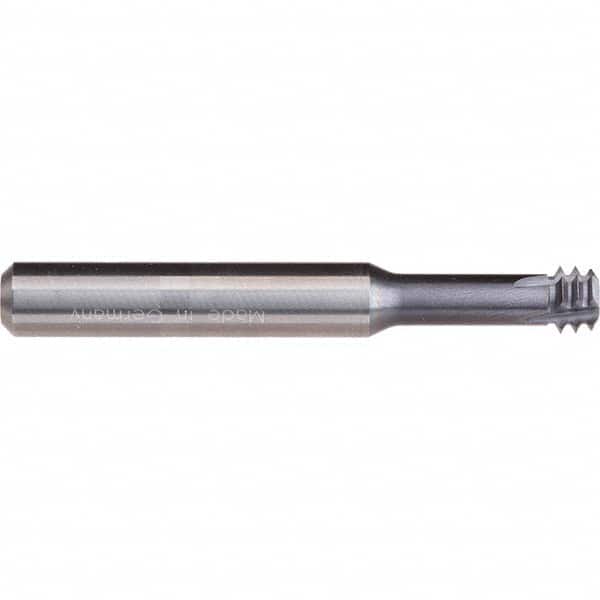

Helical Flute Thread Mill: 5/16-18, Internal, 4 Flute, Solid Carbide 18 TPI, 0.1535″ Cut Dia, 2.913″ OAL, TiAlN-T46 Coated
Item #: 16849994
Brand: Emuge
Model #: GF26A729.5010
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch - 0 Decimals) | 5/16-18 |
| Thread Type | Internal |
| Shank Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.1535 |
| Length of Cut (mm) | 3.90 |
| Minimum Nominal Diameter (Inch) | 5/16 |
| Overall Length (Decimal Inch) | 2.9130 |
| Flute Direction | Left Hand |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN-T46 |
| Coolant Through | Yes |
| Teeth Per Inch | 18 |
