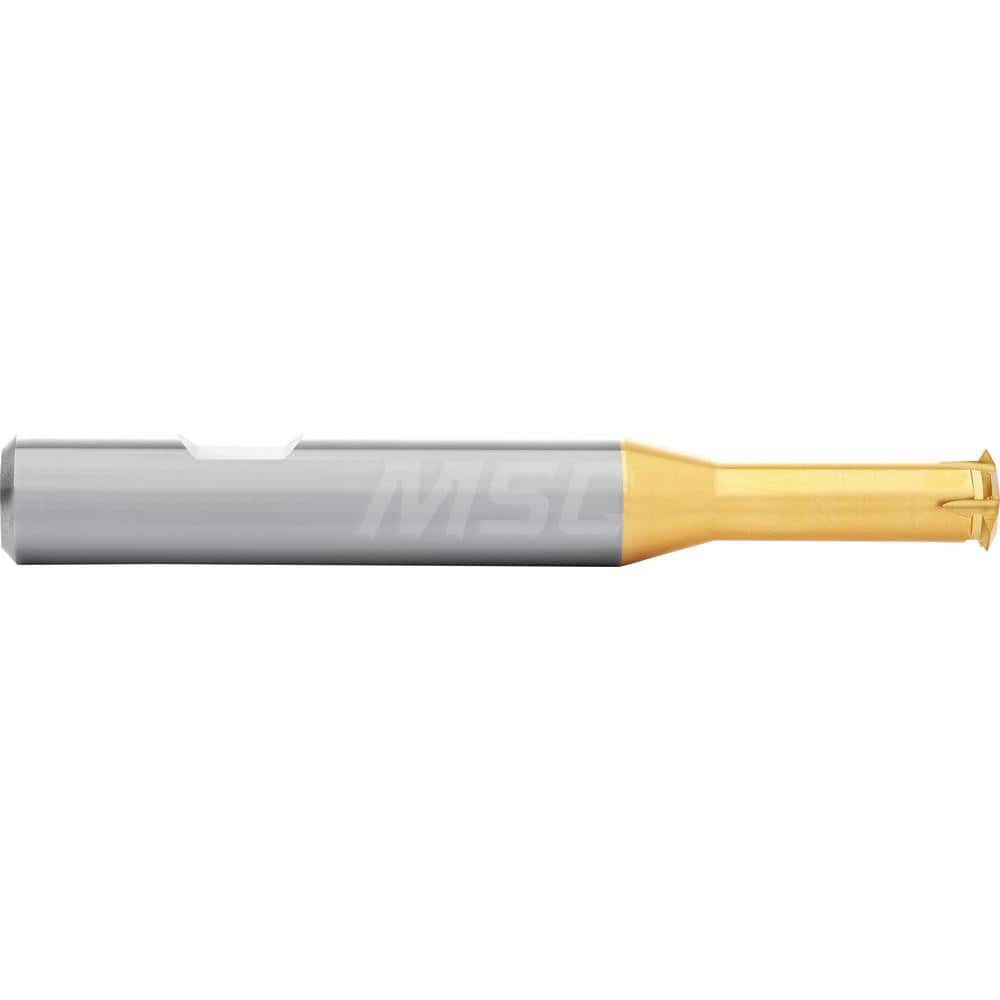

Single Profile Thread Mill: 5/16-18, 18 to 18 TPI, Internal, 4 Flutes, Solid Carbide 0.248″ Cut Dia, 5/16″ Shank Dia, TiN-T21 Coated
Item #: 10787976
Brand: Emuge
Model #: GFS83105.5010
Product Specifications
| Maximum Threads Per Inch | 18 |
| Minimum Threads Per Inch | 18 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Thread Size | 5/16-18 |
| Shank Diameter (Inch) | 5/16 |
| Cutting Diameter (Decimal Inch) | 0.2480 |
| Minimum Nominal Diameter (Inch) | 0.2480 |
| Overall Length (Inch) | 2-9/16 |
| Neck Diameter (Decimal Inch) | 0.2420 |
| Neck Length (Decimal Inch) | 0.6420 |
| Thread Standard | UNC |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| Coating/Finish | TiN-T21 |
